CNT-Based Sensors – Gas, Pressure, and Chemical Detection

Why Carbon Nanotubes Are Becoming the Core Material for Next-Generation Sensor Technology

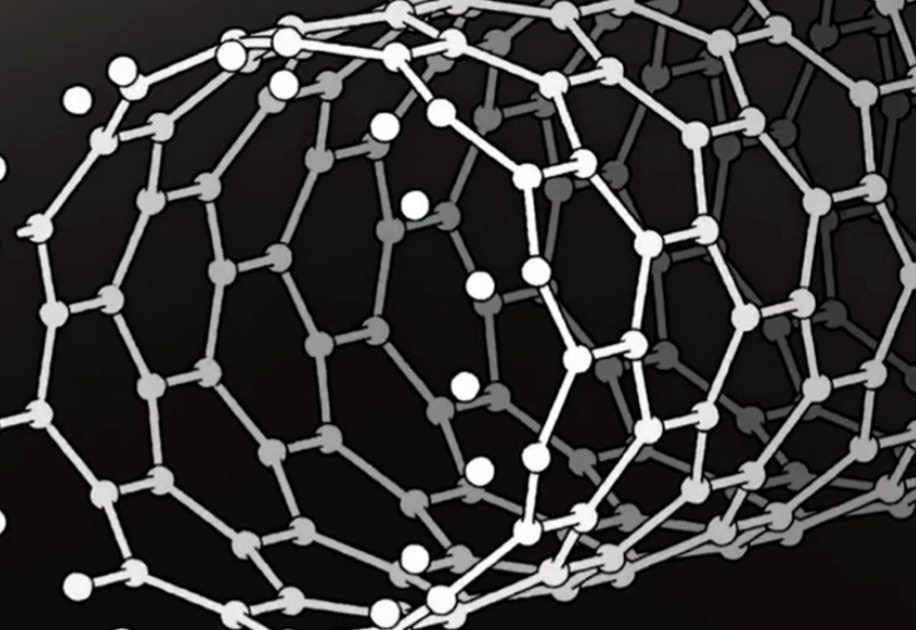

Carbon nanotubes (CNTs)—with their nanometer-scale diameter, high aspect ratio, unique electronic structure, and extreme sensitivity to surface interactions—are among the most powerful materials for modern sensing technologies. CNT-based sensors can detect gases, pressure, strain, biomolecules, ions, and chemicals at levels far below what traditional metal or polymer sensors can achieve.

Because CNTs have all atoms exposed on the surface, even a minor interaction—adsorption of a gas molecule, mechanical strain, or charge transfer—can cause a measurable change in electrical, mechanical, or optical properties. This makes CNTs ideal for developing ultra-sensitive, fast-response, and low-power sensors for industries such as environmental monitoring, medical diagnostics, wearables, and industrial safety.

This article explores the mechanisms, design strategies, fabrication methods, and performance benchmarks of CNT-based gas sensors, pressure sensors, and chemical sensors.

---

1. Why CNTs Are Powerful Sensing Materials

CNTs offer several intrinsic advantages that traditional sensors cannot match:

1.1 Extremely High Surface-to-Volume Ratio

Every atom in a CNT is directly exposed, making it highly responsive to surface interactions.

1.2 Tunable Electrical Properties

CNTs can be:

• Metallic

• Semiconducting

• Doped or functionalized
  This allows precise tuning of sensor behavior.

1.3 Fast Electron Transport

High mobility enables rapid response and recovery times—often milliseconds to seconds.

1.4 Mechanical Flexibility and Strength

CNT-based sensors maintain performance on:

• Flexible substrates

• Textiles

• Curved surfaces
  Ideal for wearables and structural monitoring.

1.5 Chemical Functionalizability

CNTs can be modified with:

• Polymers

• Functional groups

• Metal nanoparticles

• Biomolecules
  to selectively detect specific targets.

---

2. CNT-Based Gas Sensors

Gas sensing is one of the most mature and commercially relevant CNT sensing applications.

2.1 Working Principle

Gas molecules interact with CNT surfaces, causing:

• Charge transfer

• Local doping

• Changes in electrical resistance

• Shifts in current–voltage behavior

Semiconducting CNTs in particular show strong resistance changes upon adsorption.

2.2 Target Gases

CNT gas sensors can detect:

• Toxic gases: NH₃, NO₂, CO, SO₂

• Volatile Organic Compounds (VOCs): ethanol, toluene, acetone

• Hydrogen and methane

• Environmental gases: CO₂, O₃, humidity

• Biochemical vapors (breath analysis): acetone (diabetes), ammonia (kidney issues)

2.3 Enhancing Selectivity

CNTs are naturally sensitive but not selective. Solutions include:

Metal nanoparticle decoration

• Pd → H₂ detection

• Au → ethanol detection

• Pt → CO detection

Polymer coatings

Polyaniline, PEI, PDMS provide specific affinity to target gases.

Chemical functionalization

Carboxylation, amination, sulfonation allow custom gas-binding behavior.

2.4 Performance Benchmarks

CNT sensors often outperform MOX sensors because they operate at low temperatures and consume far less energy.

---

3. CNT-Based Pressure & Strain Sensors

CNT networks change their electrical resistance when mechanically deformed. This piezoresistive behavior enables ultra-flexible, durable pressure/strain sensors.

3.1 Working Mechanism

Deformation affects:

• CNT–CNT contact resistance

• Tunneling resistance between tubes

• Network percolation pathways

The resulting resistance change is highly linear and very sensitive.

3.2 Performance Metrics

CNTs enable sensors for:

• Wearable health monitoring

• Soft robotics

• Structural health monitoring

• Touch interfaces

• Human–machine interaction

3.3 Design Variants

CNT Thin-Film Piezoresistive Sensors

Made from spray-coated or printed CNT networks. Good for large-area sensing.

CNT/Elastomer Composite Sensors

CNTs embedded in PDMS or TPU allow stretchable strain sensing (up to 100–200% elongation).

CNT Yarns and Fabrics

Yarns act as conductive threads with piezoresistive response—ideal for textile sensors.

---

4. CNT-Based Chemical and Biosensors

CNTs can detect chemical molecules via interaction with their surface or functional groups.

4.1 Mechanisms

Chemical or biological analytes cause:

• Electron transfer

• Adsorption-induced resistance change

• Fluorescence quenching (for optical sensors)

4.2 Target Analytes

CNT-based sensors have been developed for:

• pH and ion concentration

• Heavy metals (Pb²⁺, Hg²⁺, Cd²⁺)

• DNA and proteins

• Glucose

• Explosives (TNT, RDX)

• Environmental pollutants

4.3 Functionalization Strategies

Covalent Functionalization

Carboxylation / amination for attaching biomolecules.

Non-Covalent Functionalization

Polymers, surfactants, or π–π stacking to preserve CNT conductivity.

Metal–CNT Hybrids

• Au nanoparticles: biorecognition

• Pt/Pd/Ru: catalytic chemical detection

---

5. Fabrication Methods for CNT Sensors

Spray Coating

Fast, scalable for thin-film sensors.

Inkjet Printing

High-precision patterning, great for flexible electronics.

Screen Printing

Cost-effective, suitable for mass production.

Vacuum Filtration & Transfer

Used for uniform CNT networks with controlled density.

CNT Yarns / Textiles

Braiding, spinning, or weaving CNT fibers into sensor fabrics.

---

6. Applications Across Industries

6.1 Environmental Monitoring

• Air quality sensors

• Toxic gas detection in industry

• Smart building systems

6.2 Medical and Wearable Devices

CNT-based wearables can measure:

• Pulse

• Respiration

• Joint movement

• Sweat chemistry

• Breath biomarkers

6.3 Consumer Electronics

Flexible touch sensors and force sensors.

6.4 Aerospace & Automotive

Structural monitoring (strain, vibration, impact).

6.5 Industrial Safety

Detection of leaks, toxic vapors, or chemical exposure.

---

7. Challenges and Future Directions

7.1 Achieving Selectivity Without Complex Functionalization

Selectivity remains the biggest engineering challenge.

7.2 Long-Term Stability

Water adsorption and ageing can shift baseline resistance.

7.3 Uniformity and Reproducibility

Variability in CNT dispersion and network formation affects sensor consistency.

7.4 Integration with Low-Power Electronics

For wearables, power-efficient circuits are essential.

---

CNT-based sensors represent one of the most exciting frontiers in material-enabled sensing technology. Their combination of high sensitivity, low power consumption, and compatibility with flexible substrates makes them uniquely suited for:

• Environmental monitoring

• Wearable health sensors

• Structural and industrial diagnostics

• Consumer electronics

• Biomedical detection

As production costs decrease and functionalization strategies improve, CNT sensors are expected to play a central role in next-generation smart systems, from IoT devices to medical diagnostics to intelligent clothing.
